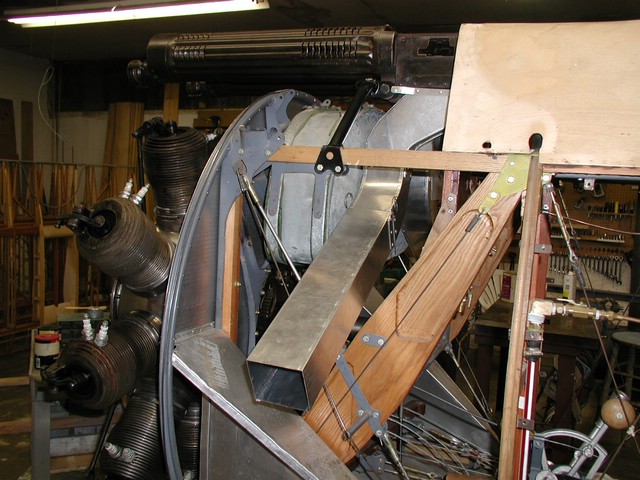

This is the final assembly attached to the left gun. So now you can see how the shell casings falling out from the bottom of the gun are directed over the side of the airplane. The chute exits through the side panel, but is too long right now. It will be trimmed when the side panel is made and installed.
