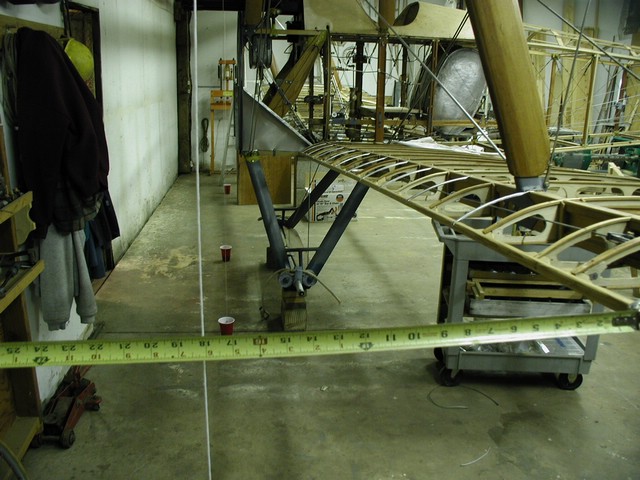

The upper wing is mounted "ahead" of the lower wing by an amount known as the stagger. In this airplane the proper stagger is 18 inches at the root and 18 3/8 at the outer strut. Its easy to measure from the plumb line to the leading edge of the lower wing.
