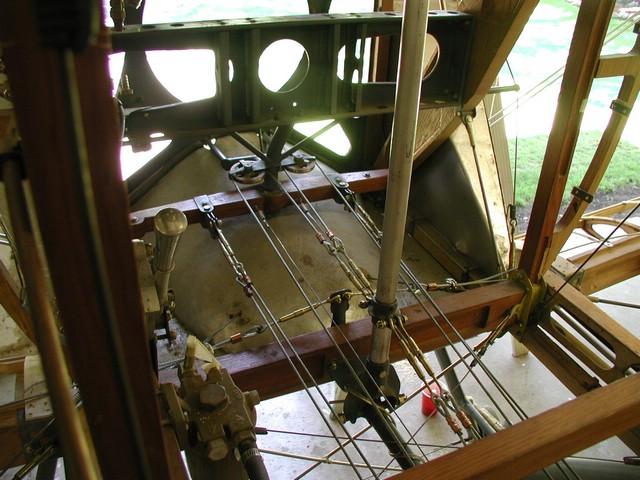

The aileron and elevator control cables must all eventually meet up at the stick. This odd conglomeration of turnbuckles allows each of those surfaces to be properly tensioned. There is also the set of turnbuckles that adjust the tension on the rudder cables, shown attached to the rudder bar.
